Blueline PTO Pumps
Blueline Pumps

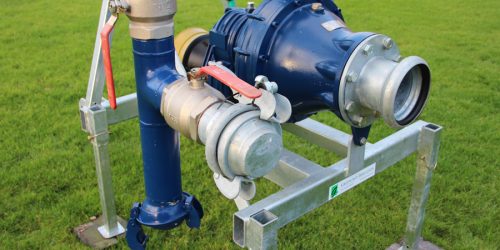

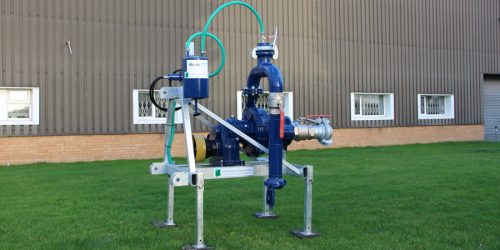

The Blueline PT range of centrifugal pumps features a multi-channel impeller and a unique, aggressive, double chopping mechanism to give reliable pumping and ease of use. The PT range is available in a wide range of models, including tractor driven, engine driven and direct coupled electric units. This range of pumps is ideal for applications that require a substantial pressure capability combined with trouble free solids handling such as with umbilical systems. The KK pump has an oil cooled gearbox.
The high performance chopping mechanism ensures thorough maceration of slurry prior to entry into the impeller, reducing the risk of blockage. Shear pin protection of the chopping mechanism and independent sealing of both gearbox and pump casings ensures long and trouble free working life.
We can offer this pump range either PTO or engine driven.
Typical specifications:
- Maximum capacity – 270 m3/h
- Maximum head – 137m
- Power requirements – 65 to 160 HP
- Available in five sizes to ensure accurate matching of pump
| Input RPM | Pressure Range (Bar) | Capacity (metre cubed/hr) | Required Power HP (kW) | |
|---|---|---|---|---|
| PTH65 | 540/1000 | 6 – 12 | 45 – 150 | 65 – 90 (50 – 67) |
| PTH100 | 540 | 5 – 7 | 45 – 150 | 65 – 75 (50 – 60) |
| PTH100K | 540 | 4 – 6 | 60 – 240 | 70 – 90 (50 – 67) |
| PTH100KK | 540/1000 | 6 – 14 | 60 – 270 | 100 – 160 (75 – 120) |
| PTH150 | 540/1000 | 2 – 5 | 35 – 450 | 120 – 150 (90 -112) |
