MB Range
Veneroni Slurry Mixers MB Range

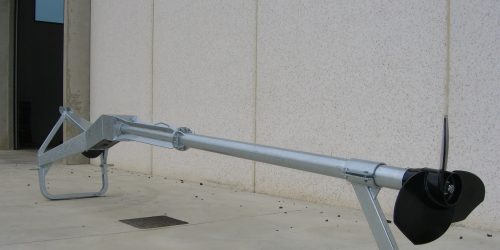

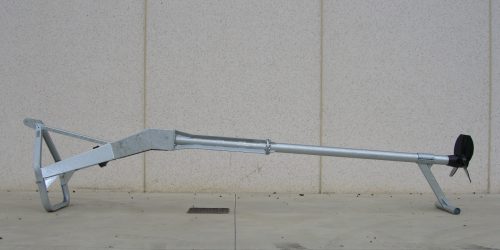

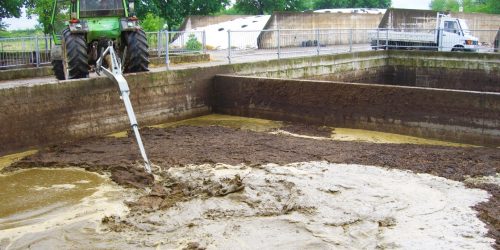

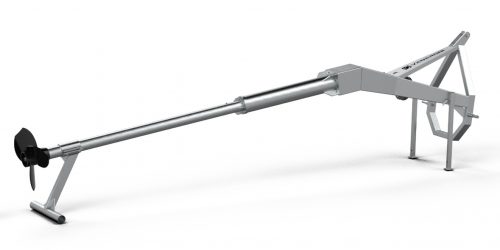

The MB mixer-oxygenator is designed for the homogenisation and partial trituration of the surface crust and sediment in sewage tanks. The MB features a sturdy, streamlined design that makes handling easy, even with tanks that are difficult to reach, such as ones with a trapdoor or underground ones with a grid. Power transmission is supported by ball bearings with an oil bath and Widia mechanical seal. The framework is entirely hot galvanized.
Model | A mm | B mm | Absorbed power (540/1′) CV | Treated liquid manure (m3/h) | |
---|---|---|---|---|---|
M4 | MB4 | 2500 | 4000 | 40÷80 | 300÷700 |
M5 | MB5 | 3500 | 5000 | 40÷80 | 300÷700 |
M6 | MB6 | 4500 | 6000 | 40÷80 | 300÷700 |
M7 | 5500 | 7000 | 40÷80 | 300÷700 | |
M8 | 6500 | 8000 | 40÷80 | 300÷700 | |
M9 | 7500 | 9000 | 40÷80 | 300÷700 |
