MD Range
Veneroni Slurry Mixers MD Range

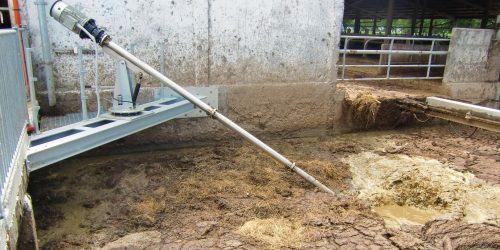

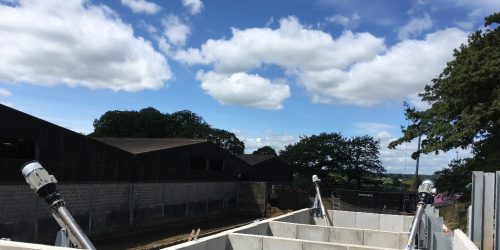

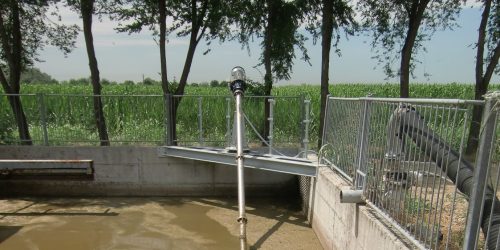

The MD mixer-oxygenator is the electric version in the range. It is driven by a three-phase motor with an industrial type axial reduction gear. It is used in sewage storage tanks, which require constant automatic mixing or where tractor access is impossible. The mixing boom is hinged on a support allowing horizontal regulation via a fifth wheel and vertical adjustment via a hydraulic jack with a manual pump. Power transmission is supported by ball bearings in an oil bath, with Widia mechanical seal. The framework can be entirely hot galvanized or with an AISI 304 stainless steel mixer boom and propeller.
| Model | A m | B m | C m | Motor power | Treated liquid manure(m3/h) | ||
|---|---|---|---|---|---|---|---|
| CV | kW | ||||||
| MD4/ | 5.5 | 2.8 | 4.2 | 2.3 | 7.5 | 5.5 | 160 |
| 7.5 | 2.8 | 4.2 | 2.3 | 10 | 7.5 | 185 | |
| 11 | 2.8 | 4.2 | 2.3 | 15 | 11 | 235 | |
| MD5/ | 5.5 | 3.5 | 5.2 | 3 | 7.5 | 5.5 | 160 |
| 7.5 | 3.5 | 5.2 | 3 | 10 | 7.5 | 185 | |
| 11 | 3.5 | 5.2 | 3 | 15 | 11 | 235 | |
| MD6/ | 7.5 | 4.2 | 6.2 | 3.7 | 10 | 7.5 | 185 |
| 11 | 4.2 | 6.2 | 3.7 | 15 | 11 | 235 | |
| 15 | 4.2 | 6.2 | 3.7 | 20 | 15 | 285 | |
