MF Range

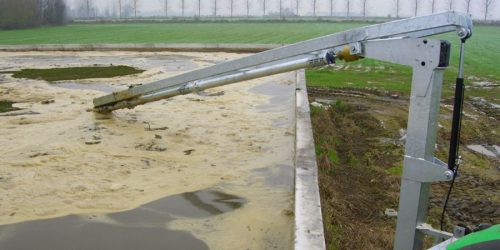

Veneroni Slurry Mixers MF Range
- Treatment of great quantities of sewage in a short time
- Tractor operation at 500 rpm with double transmission at 90°
- High performance due to the particular shape of the blades
- Transmission in oil bath with ball bearing and mechanical Widia seal

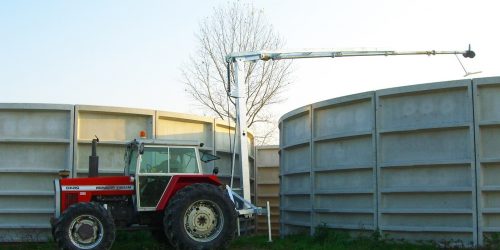

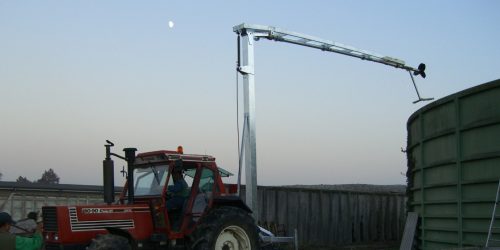

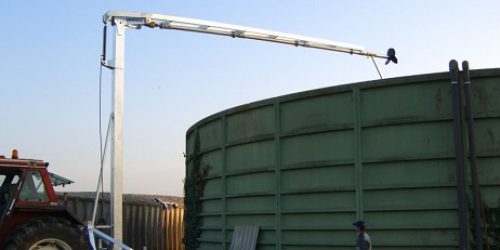

- The mixer is attached to a column supported by a three point frame
- Regulation of the working depth by hydraulic jack
- Height of the column from 2 to 5.5 m according to the tank projection
- Aeration-oxygenation system
- 360° degree column rotation
| Model | L1 mm | H1 mm | H2 mm | H3 mm | Absorbed power (540/1′) CV | Treated liquid manure (m3/h) |
|---|---|---|---|---|---|---|
| MF 2/5 MF 2/6 MF 2/7 MF 2/8 | 5200 | 2300 | 2000 | 3400 | 40÷80 | 300÷700 |
| 6200 | 2300 | 2000 | 4000 | 40÷80 | 300÷700 | |
| 7200 | 2300 | 2000 | 4600 | 40÷80 | 300÷700 | |
| 8200 | 2300 | 2000 | 5200 | 40÷80 | 300÷700 | |
| MF 2,5/5 MF 2,5/6 MF 2,5/7 MF 2,5/8 | 5200 | 2800 | 2500 | 3400 | 40÷80 | 300÷700 |
| 6200 | 2800 | 2500 | 4000 | 40÷80 | 300÷700 | |
| 7200 | 2800 | 2500 | 4600 | 40÷80 | 300÷700 | |
| 8200 | 2800 | 2500 | 5200 | 40÷80 | 300÷700 | |
| MF 3/6 MF 3/7 MF 3/8 | 6200 | 3300 | 3000 | 4000 | 40÷80 | 300÷700 |
| 7200 | 3300 | 3000 | 4600 | 40÷80 | 300÷700 | |
| 8200 | 3300 | 3000 | 5200 | 40÷80 | 300÷700 | |
| MF 3,5/6 MF 3,5/7 MF 3,5/8 | 6200 | 3800 | 3500 | 4000 | 40÷80 | 300÷700 |
| 7200 | 3800 | 3500 | 4600 | 40÷80 | 300÷700 | |
| 8200 | 3800 | 3500 | 5200 | 40÷80 | 300÷700 | |
| MF 4/7 MF 4/8 | 7200 | 4300 | 4000 | 4600 | 40÷80 | 300÷700 |
| 8200 | 4300 | 4000 | 5200 | 40÷80 | 300÷700 | |
| MF 4,5/7 MF 4,5/8 | 7200 | 4800 | 4500 | 4600 | 40÷80 | 300÷700 |
| 8200 | 4800 | 4500 | 5200 | 40÷80 | 300÷700 | |
| MF 5/8 | 8200 | 5300 | 5000 | 5200 | 40÷80 | 300÷700 |
| MF 5,5/8 | 8200 | 5800 | 5500 | 5200 | 40÷80 | 300÷700 |
