LE Range
Veneroni LE Range
The LE pump has various motorisations available according to the required characteristics of the use.
Thanks to the effective performance even when modest power is applied, the LE pump is a valid instrument for automatic re-circulation plants, streaming, transfer, loading of separators, where reliability is called for because of the frequent use also in the presence of solid and fibrous bodies.

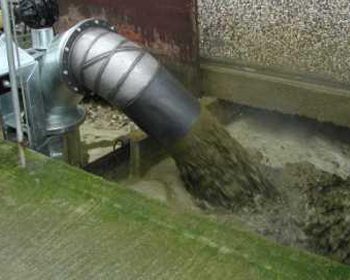

The LE pump is equipped with a mixing nozzle, which homogenises the sewage, eliminating all types of sedimentation before pumping.
The LE pump is supplied standard heat-galvanised; on request, the version in stainless steel is also available.
Controls for rotation and operation of mixing spout; hydraulic actuators on request.

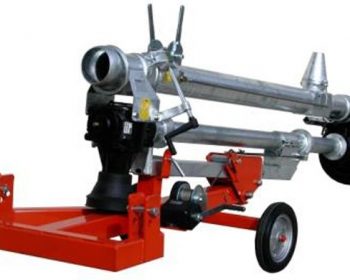

The LE pumps are available, on request, with trailer for manual transport or with tractor.
“M” version with a mixing impeller driven by the main transmission shaft.

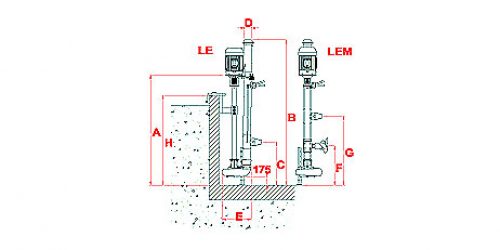

Dimensions: LE – LEM
| Model | D mm | A mm | B mm | C mm | E mm | F mm | G mm | H mm | |
|---|---|---|---|---|---|---|---|---|---|
| 10/4/ 10/5,5/ | 2 | 2105 | 2600 | 810 | 1.3 – 1.8 | ||||
| 2.5 | 2605 | 3100 | 810 | 1.8 – 2.3 | |||||
| 3 | 3105 | 3600 | 960 | 2.3 – 2.8 | |||||
| 3.5 | 120 | 3605 | 4100 | 1110 | 440 | 710 | 1310 | 2.8 – 3.3 | |
| 4 | 4106 | 4600 | 1260 | 3.3 – 3.8 | |||||
| 4.5 | 4605 | 5100 | 1410 | 3.8 – 4.3 | |||||
| 5 | 5105 | 5600 | 1560 | 4.3 – 4.8 | |||||
| 12/7,5/ 12/9,2/ 12/11/ 12/15/ | 2 | 2200 | 2910 | 870 | 1.3 – 1.8 | ||||
| 2.5 | 2700 | 3410 | 870 | 1.8 – 2.3 | |||||
| 3 | 3200 | 3910 | 1020 | 2.3 – 2.8 | |||||
| 3.5 | 120 | 3700 | 4410 | 1170 | 510 | 770 | 1370 | 2.8 – 3.3 | |
| 4 | 4200 | 4910 | 1320 | 3.3 – 3.8 | |||||
| 4.5 | 4700 | 5410 | 1470 | 3.8 – 4.3 | |||||
| 5 | 5200 | 5910 | 1620 | 4.3 – 4.8 | |||||
| 15/18,5/ 15/22/ 15/30/ | 2 | 2220 | 3035 | 870 | 1.3 – 1.8 | ||||
| 2.5 | 2720 | 3535 | 860 | 1.8 – 2.3 | |||||
| 3 | 3220 | 4035 | 1020 | 2.3 – 2.8 | |||||
| 3.5 | 150 | 3720 | 4535 | 1170 | 580 | 790 | 1390 | 2.8 – 3.3 | |
| 4 | 4220 | 5035 | 1320 | 3.3 – 3.8 | |||||
| 4.5 | 4720 | 5535 | 1470 | 3.8 – 4.3 | |||||
| 5 | 5220 | 6035 | 1620 | 4.3 – 4.8 |
Features: LT – LTM
| Model | Rate of Flow | Electric Motor | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Q (l/s) | 10 | 25 | 40 | 55 | 70 | 85 | 100 | 115 | Rated power of motor | rpm | |
| Q (l/min) | 600 | 1500 | 2400 | 3300 | 4200 | 5100 | 6000 | 6900 | |||
| Q (mc/h) | 36 | 90 | 144 | 198 | 252 | 306 | 360 | 414 | |||
| 10/4 | P (kW) | 2.9 | 3.2 | 7.5 | 1450 | ||||||
| H (m) | 9 | 7 | |||||||||
| 10/5,5 | P (kW) | 5.5 | 5.6 | 6 | 6.5 | 7.5 | 1450 | ||||
| H (m) | 11 | 10 | 8 | 6 | |||||||
| LE 12/7,5 | P (kW) | 5.5 | 5.6 | 6 | 6.5 | 7.5 | 1450 | ||||
| H (m) | 11 | 10 | 8 | 6 | |||||||
| LE 12/9,2 | P (kW) | 6.5 | 6.7 | 7 | 7.5 | 7.5 | 1450 | ||||
| H (m) | 12 | 11 | 9 | 7 | |||||||
| LE 12/11 | P (kW) | 6.5 | 6.7 | 7 | 7.5 | 9.2 | 1450 | ||||
| H (m) | 15 | 13 | 11 | 9 | 9.8 | ||||||
| LE 12/15 | p (kW) | 11 | 11.2 | 11.4 | 11.8 | 12.6 | 13.4 | 15 | 1450 | ||
| H (m) | 20 | 18 | 16 | 13 | 10 | 7 | |||||
| LE 15/18,5 | P (kW) | 14.6 | 14.7 | 14.8 | 14.8 | 14.9 | 15.7 | 18.5 | 1450 | ||
| H (m) | 19 | 18 | 16 | 14 | 13 | 10 | |||||
| 15/22 | P (kW) | 16.3 | 16.6 | 16.7 | 16.7 | 17 | 17.8 | 19.2 | 22 | 1450 | |
| H (m) | 20 | 19 | 18 | 16 | 14 | 12 | 10 | ||||
| LE 15/30 | P (kW) | 21.6 | 21.8 | 22 | 22.3 | 22.8 | 23.6 | 25 | 26.4 | 30 | 1450 |
| H (m) | 25 | 24 | 23 | 21 | 19 | 17 | 15 | 13 |
